Export Layers as Images to Keynote Slides

This macOS-only example details the use of an Omni Automation plug-in to export images to file and then call a shortcut to add those exported images to new slides in the frontmost Keynote presentation.

Export Layers to Keynote Slides
A macOS-only shortcut that adds a row for each of the chosen images to the current outline.

↓ Downloads:

DOWNLOAD PLUG-IN • DOWNLOAD SHORTCUT

The OmniGraffle Omni Automation Plug-In

This plug-in exports the layers of the current OmniGraffle canvas as a series of PNG files, either one for each layer, or as a set of images composited from the bottom to the topmost layer. During execution of the plug-in, the user will be prompted to choose a name and location for the folder containing the exported images.

Here is the initial interface presented by the plug-in:

Plug-In Interface

If the option to execute an installed shortcut is chosen, a file URL to the created folder will be passed to the installed shortcut whose name has been entered in the plug-in interface. The passed file URL is in a form similar to this:

file:///Users/Otto/Pictures/Export Folder/

which will be percent encoded and appended to the URL that calls the Shortcuts application: (see line 118 shown below)

file%3A%2F%2F%2FUsers%2FOtto%2FPictures%2FExport%20Folder%2F

The provided shortcut is designed to receive text input and contains actions for decoding and processing the URL of the created folder.

NOTE: the plug-in uses the Preferences class to store and retrieve used settings.

IMPORTANT: for best results, set the dimensions of the current canvas to match those of the Keynote slides. For example, if the Keynote presentation dimensions is set to “wide” (1920x1080), then set the dimensions of the canvas to match (1920x1080). Also note that the alpha transparency of the PNG images uses the current OmniGraffle export settings (see below).

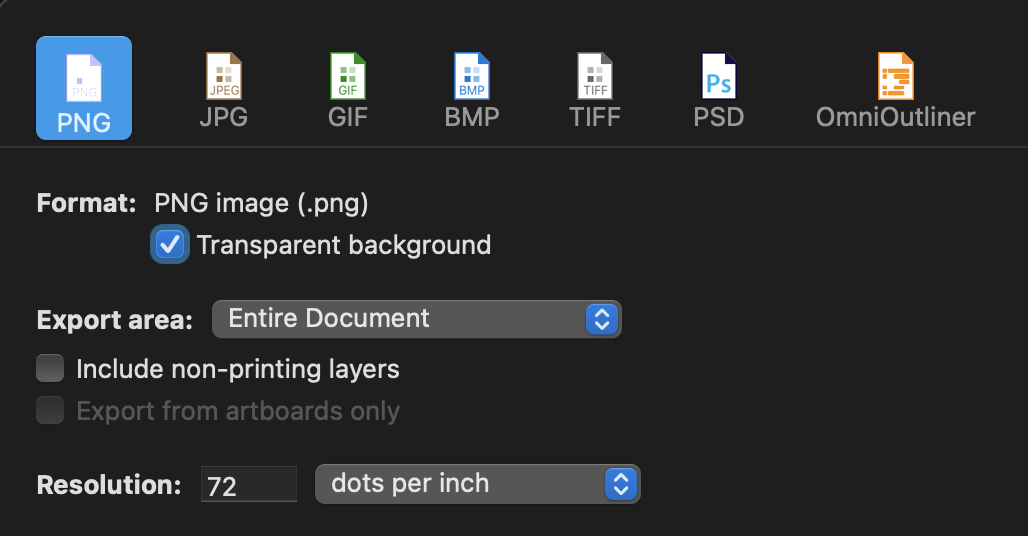

OmniGraffle Export Settings
Plug-In: Export Current Canvas Layers



/*{
	"type": "action",
	"targets": ["omnigraffle"],
	"author": "Otto Automator",
	"identifier": "com.omni-automation.og.export-layers-current-vanvas",
	"version": "1.0",
	"description": "Exports the layers of the current canvas as either individual PNG files, or as images composited from the bottom to the topmost layer.",
	"label": "Export Current Canvas Layers",
	"shortLabel": "Export Layers",
	"paletteLabel": "Export Layers",
	"image": "gearshape"
}*/
(() => {
	let preferences = new Preferences()
	var action = new PlugIn.Action(async function(selection, sender){

		// defaults
		var defaultShouldRunShortcut = false
		var defaultExportOptionIndex = 0
		var defaultShortcutTilte = "Title of Shortcut"

		var shouldRunShortcut = preferences.readBoolean("shouldRunShortcut")
		console.log("shouldRunShortcut-stored", shouldRunShortcut)
		if(!shouldRunShortcut){
			shouldRunShortcut = defaultShouldRunShortcut
		}

		var exportOptionIndex = preferences.readNumber("exportOptionIndex")
		console.log("exportOptionIndex-stored", exportOptionIndex)
		if(!exportOptionIndex){
			exportOptionIndex = defaultExportOptionIndex
		}

		var shortcutTitle = preferences.readString("shortcutTitle")
		console.log("shortcutTitle-stored", shortcutTitle)
		if(!shortcutTitle){
			shortcutTitle = defaultShortcutTilte
		}

		var exportOptions = ["Individual Images","Composited Images"]
		var exportOptionsMenu = new Form.Field.Option(
			"exportOption",
			"Image Style",
			[0,1],
			exportOptions,
			exportOptionIndex
		)

		var checkSwitchField = new Form.Field.Checkbox(
			"shouldRunShortcut",
			"Run associated shortcut",
			shouldRunShortcut
		)

		var textInputField = new Form.Field.String(
			"shortcutTitle",
			"Shortcut",
			shortcutTitle,
			null
		)

		var inputForm = new Form()
		inputForm.addField(exportOptionsMenu)
		inputForm.addField(checkSwitchField)
		inputForm.addField(textInputField)

		inputForm.validate = function(formObject){
			var shouldRunShortcut = formObject.values["shouldRunShortcut"]
			if (shouldRunShortcut){
				var textValue = formObject.values['shortcutTitle']
				if(!textValue){return false}
			}
			return true
		}

		var formPrompt = "Export Parameters:"
		var buttonTitle = "Continue"
		var formObject = await inputForm.show(formPrompt,buttonTitle)

		var exportOptionIndex = formObject.values["exportOption"]
		preferences.write("exportOptionIndex", exportOptionIndex)
		var shouldRunShortcut = formObject.values["shouldRunShortcut"]
		preferences.write("shouldRunShortcut", shouldRunShortcut)
		var shortcutTitle = formObject.values["shortcutTitle"]
		preferences.write("shortcutTitle", shortcutTitle)

		var cnvs = document.windows[0].selection.canvas
		cnvs.layers.forEach(layer => layer.visible = false)
		var wrapperPromises = new Array()
		cnvs.layers.slice().reverse().forEach((layer, index) => {
			layer.visible = true
			var exportName = encodeURIComponent(index + "-" + layer.name)
			var fileTypeID = "public.png"
			var wrapperPromise = document.makeFileWrapper(exportName, fileTypeID)
			wrapperPromises.push(wrapperPromise)
			if (exportOptionIndex === 0){layer.visible = false}
		})
		cnvs.layers.forEach(layer => layer.visible = true)

		Promise.all(wrapperPromises).then(wrappers => {
			// Create and Show File Saver
			var filesaver = new FileSaver()
			filesaver.message = "Name and Location for export folder:"
			var folderType = new FileType("public.folder")
			filesaver.types = [folderType, FileType.png, FileType.pdf]
			//var docName = document.name
			var fldrwrapper = FileWrapper.withChildren("Export Folder", wrappers)
			var fileSaverPromise = filesaver.show(fldrwrapper)
			// Process File Saver Result
			fileSaverPromise.then(urlObj => {
				if(shouldRunShortcut === true){
					// remove any percent encoding
					var decodedURL = decodeURIComponent(urlObj.string)
					// encode entire URL
					var encodedURL = encodeURIComponent(decodedURL)
					// construct and execute Shortcuts URL
					shortcutTitle = encodeURIComponent(shortcutTitle)
					var urlStr = "shortcuts://run-shortcut?name=" + shortcutTitle + "&input=text&text=" + encodedURL
					URL.fromString(urlStr).open()
				}
			})
		})
	});

	action.validate = function(selection, sender){
		return true
	};

	return action;
})();

Shortcut for Processing Exported Images

Here is the shortcut (DOWNLOAD) designed to accept the passed file URL to the export folder, and to create new slides in the frontmost Keynote presentation, for each of the exported images.

 1  Shortcut Input Settings • This shortcut is designed to receive text as its input. As stated previously, the passed text with be a percent-encoded file URL to the created folder containing the exported layer images.

 2  Decode Passed Text • This action will decode the passed text, converting it back into a file URL format.

 3  Trim Schema • Remove the file:// schema from the beginning of the file URL. The resulting segment will be a path reference in POSIX form to the export folder: /Users/Otto/Pictures/Export Folder/

 4  “Run AppleScript” action • The UNIX path string is passed as input to the “Run AppleScript” action.

 5  Generate File References • The script converts the passed path to a file reference and then derives file references to each of the exported image files.

 6  Generate Slides • The list of generated image file references is iterated to create a new slide for each of the images.

Export Layers to Keynote Slides

Here is the code of the AppleScript script for processing the images.

AppleScript: Keynote Slides from Image Files



on run {input, parameters}
	set sourceFolder to input as POSIX file
	set fileNames to list folder sourceFolder
	set theseImageFiles to {}
	repeat with i from 1 to count of fileNames
		set thisImageFile to (sourceFolder as string) & (item i of fileNames)
		set thisImageFile to thisImageFile as alias
		set the end of theseImageFiles to thisImageFile
	end repeat

	tell application "Keynote"
		activate
		if playing is true then tell the front document to stop
		if not (exists document 1) then
			set thisDocument to make new document
			set thisSlide to the first slide of thisDocument
		end if
		repeat with i from 1 to the count of theseImageFiles
			set thisImageFile to (item i of theseImageFiles)
			tell front document
				set thisSlide to make new slide with properties {base layout:slide layout "Blank"}
				tell thisSlide
					set thisImage to make new image with properties {file:thisImageFile}
				end tell
			end tell
		end repeat
	end tell
	return input
end run
