VCOG0001

OmniGraffle: Floor Plan Stencil

Using Omni Automation Voice Commands to import and arrange elements from the Floor Plan stencil set for OmniGraffle.

Scope

Language: English (United States 🇺🇸 · Great Britain 🇬🇧 · Australia 🇦🇺 · Canada 🇨🇦)

Scope: OmniGraffle

Requirements

• OmniGraffle: 7.21.4 (macOS)
• System: macOS 12

Download & Reference Links

• ⇩ COMMANDS-FILE (OmniGraffle 7) (macOS)
• Installation instructions for importing the commands file.
• Voice Control on macOS (Apple documentation)

Designing a Reading Room

Using Voice Control to design a reading room.

PLAY (G) PAUSE (H) BACK REWIND SCREEN

Designing a Bedroom with Ensuite

Using Voice Control to design a bedroom with connected bathroom.

PLAY (J) PAUSE (K) BACK REWIND SCREEN

First-Run of Voice Commands

NOTE: (below) The first time a command is activated, a script security dialog will be presented for you to review the script. Once you have scrolled the script  01 , approved its further use without prompting  02 , and run the script  03 , subsequent activations will execute automatically without prompting.

Table of Categories

Shared Commands

Commands that can be used with selected elements.

• “Toggle Lock”
• “Lock This”
• “Lock These”
• “Unlock This”
• “Unlock These”
• “Duplicate This”
• “Duplicate These”
• “Group These”
• “Ungroup [This]”
• “Rotate Right” (90°)
• “Rotate Left” (-90°)
• “Half Rotate Left” (-45°)
• “Half Rotate Counter Clockwise” (-45°)
• “Half Rotate Right” (45°)
• “Half Rotate Clockwise” (45°)
• “Flip This” (180°)
• “Flip Vertical”
• “Flip Vertically”
• “Flip Horizontal”
• “Flip Horizontally”
• “Unite [these] Shapes”
• “Duplicate [these] as [a] United Shape”
• “Subtract [these] Shapes”
• “Duplicate [these] as [a] Subtracted Shape”
• “Intersect [these] Shapes”
• “Duplicate [these] as [an] Intersected Shape”

Rooms, Walls, and Stairs

Commands that can be used to define spaces:

• “Add 4 by 6 Room”
• “Add 5 by 7 Room”
• “Add 8 by 10 Room”
• “Add 10 by 10 Room”
• “Add 10 by 12 Room”
• “Add 11 by 12 Room”
• “Add 14 by 12 Room”
• “Add 14 by 16 Room”
• “Add 16 by 20 Room”
• “Add Single-Floor Apartment”
• “Add 1-Foot Wall”
• “Add 2-Foot Wall”
• “Add 3-Foot Wall”
• “Add 4-Foot Wall”
• “Add 5-Foot Wall”
• “Add 6-Foot Wall”
• “Add 7-Foot Wall”
• “Add 8-Foot Wall”
• “Add 9-Foot Wall”
• “Add 10-Foot Wall”
• “Add 2-Sided Wall”
• “Add 3-Sided Wall”
• “Add 4-Sided Wall”
• “Add Stairs [Going] Up”
• “Add Upward Stairs”
• “Add Stairs [Going] Down”
• “Add Downward Stairs”

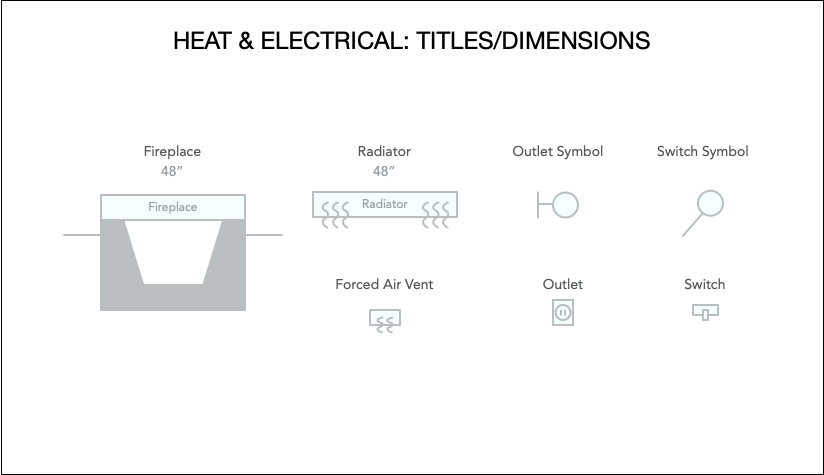

Heat and Electrical

Commands for adding utility elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Fireplace”
• “Add [Heat] Radiator”
• “Add [Forced] Air Vent”
• “Add [Electrical] Outlet Symbol”
• “Add [Electrical] Outlet”
• “Add [Light] Switch Symbol”
• “Add [Light] Switch”

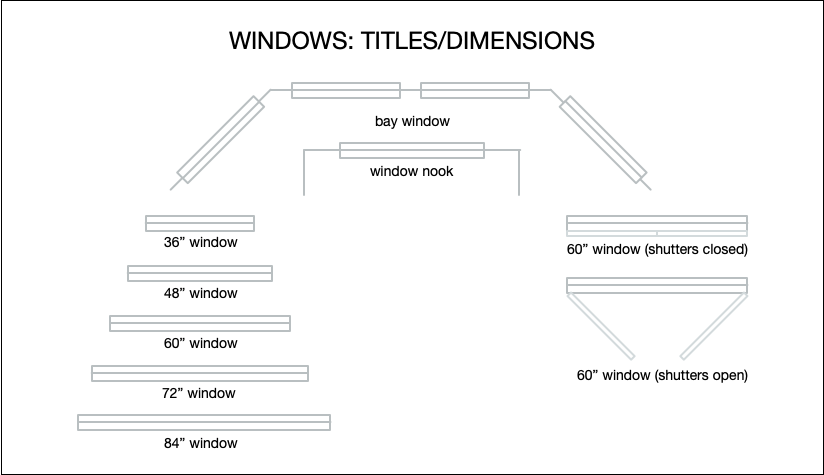

Windows

Commands for adding window elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Bay Window”
• “Add Window Nook”
• “Add 36 Inch Window”
• “Add 48 Inch Window”
• “Add 60 Inch Window”
• “Add 72 Inch Window”
• “Add 84 Inch Window”
• “Add [60 Inch] Window with Shutters Closed”
• “Add [60 Inch] Window with Shutters Open”

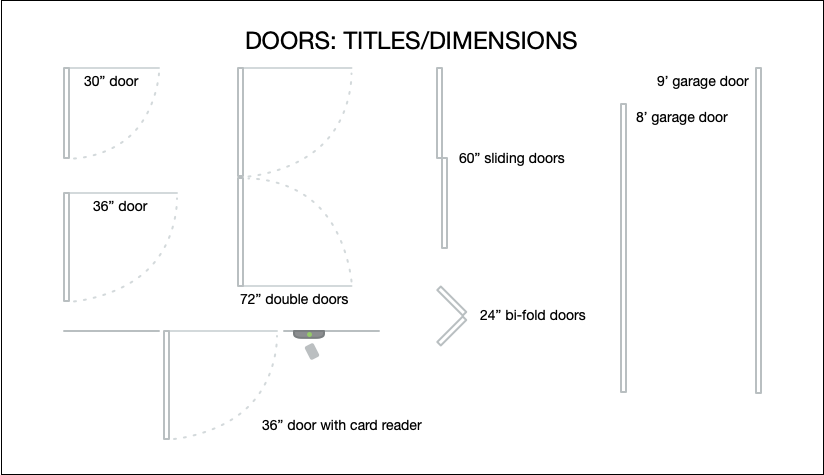

Doors

Commands for adding door elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add 30 Inch Door”
• “Add 36 Inch Door”
• “Add [36 Inch] Door with Card Reader”
• “Add [72 Inch] Double Doors”
• “Add [60 Inch] Sliding Doors”
• “Add [24 Inch] Bi-Fold Doors”
• “Add [8 Foot] Garage Door”
• “Add 9 Foot Garage Door”

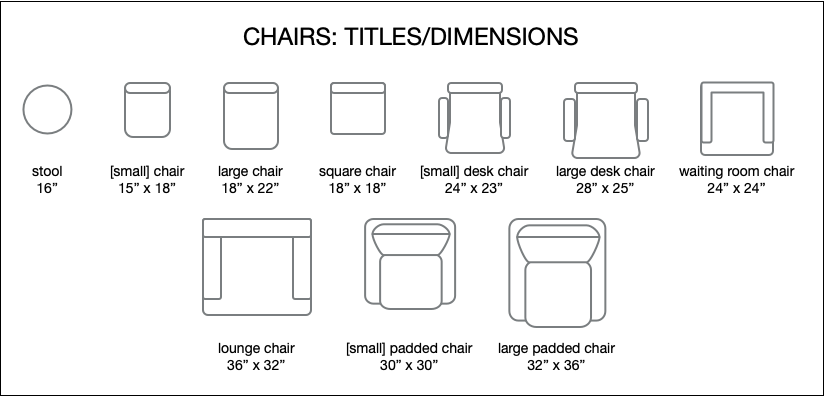

Chairs

Commands for adding chair elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Stool”
• “Add [Small] Chair”
• “Add Large Chair”
• “Add Square Chair”
• “Add [Small] Desk Chair”
• “Add [Small] Office Chair”
• “Add Large Desk Chair”
• “Add Large Office Chair”
• “Add Waiting Room Chair”
• “Add Lounge Chair”
• “Add [Small] Padded Chair”
• “Add [Small] Upholstered Chair”
• “Add Large Padded Chair”
• “Add Large Upholstered Chair”

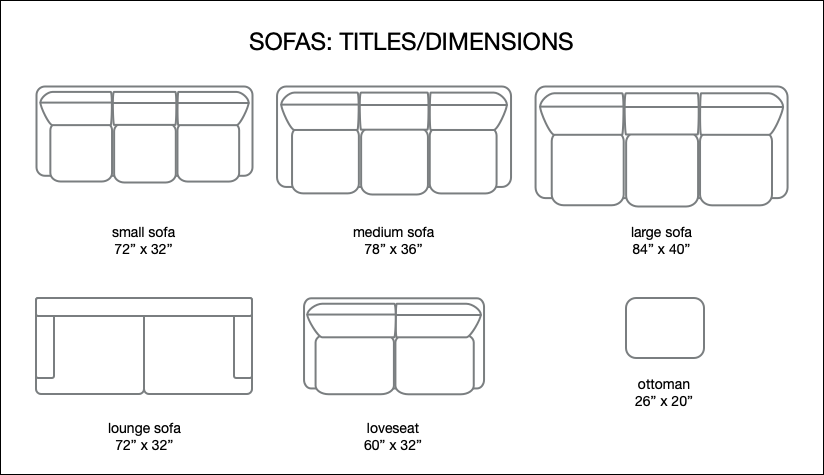

Sofas

Commands for adding sofa elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Small Sofa”
• “Add Medium Sofa”
• “Add Large Sofa”
• “Add Lounge Sofa”
• “Add Loveseat”
• “Add Ottoman”

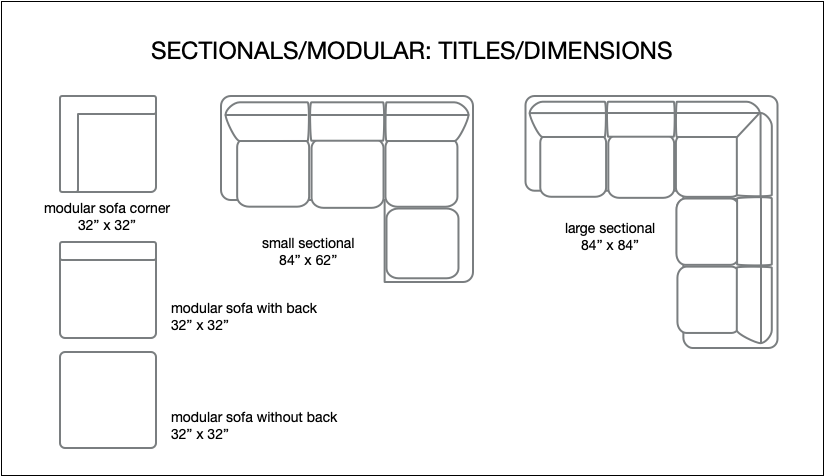

Sectionals/Modular Sofa

Commands for adding sectional and modular sofa elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Small Sectional”
• “Add Large Sectional”
• “Add Modular Sofa Corner”
• “Add Modular Sofa with Back”
• “Add Modular Sofa without Back”
• “Add Modular Sofa [with No Back]”

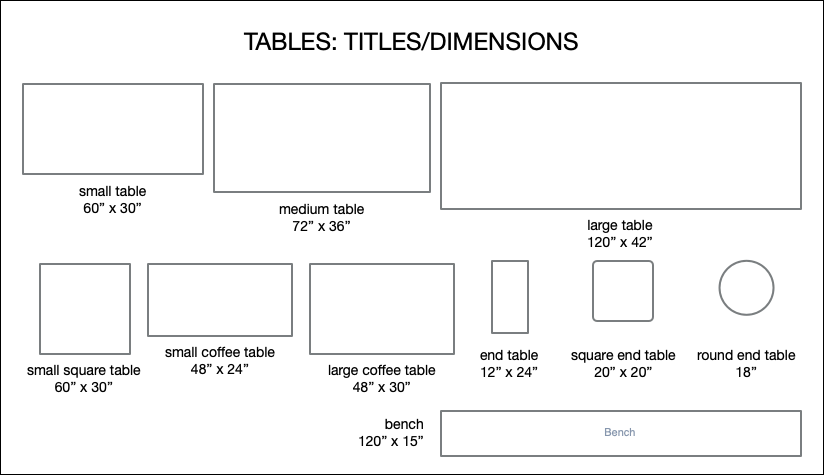

Tables

Commands for adding table elements (mostly rectangular) to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Small Table”
• “Add Small Square Table”
• “Add Medium Table”
• “Add Large Table”
• “Add Small Coffee Table”
• “Add Large Coffee Table”
• “Add End Table”
• “Add Square End Table”
• “Add Round End Table”
• “Add Bench”

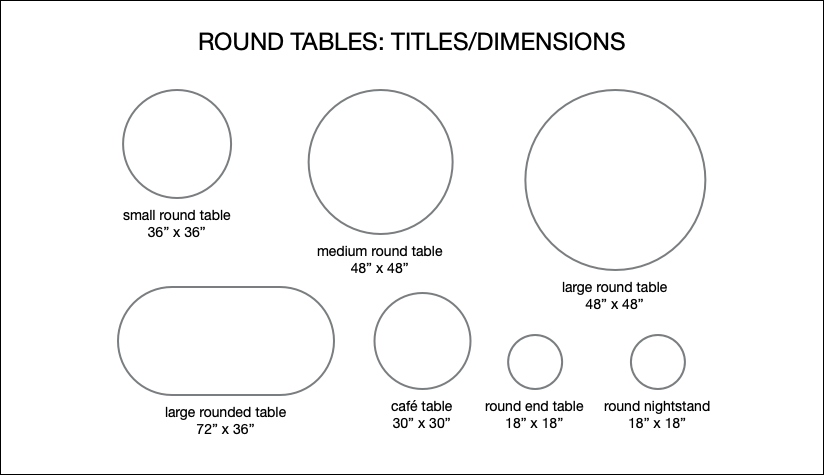

Round Tables

Commands for adding round table elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Small Round Table”
• “Add Medium Round Table”
• “Add Large Round Table”
• “Add Large Rounded Table”
• “Add Café Table”
• “Add Round End Table”
• “Add Round Nightstand”

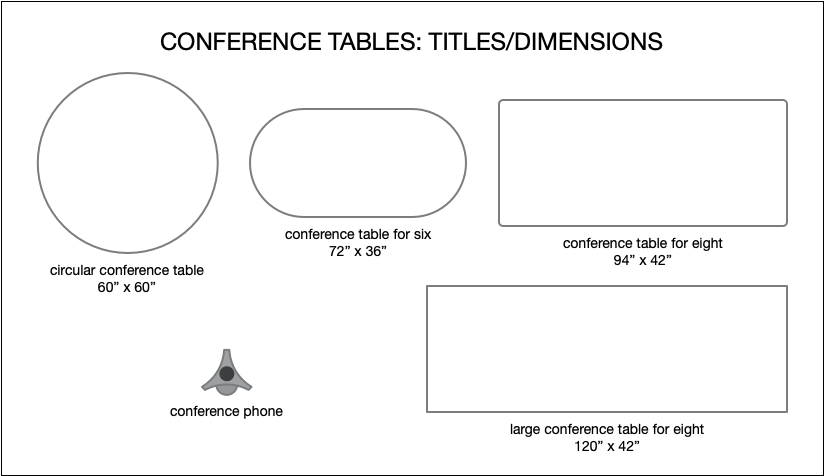

Conference Tables

Commands for adding conference table elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Circular Conference Table”
• “Add Conference Table for Six”
• “Add Conference Table for Eight”
• “Add Large Conference Table for Eight”
• “Add Conference Phone”

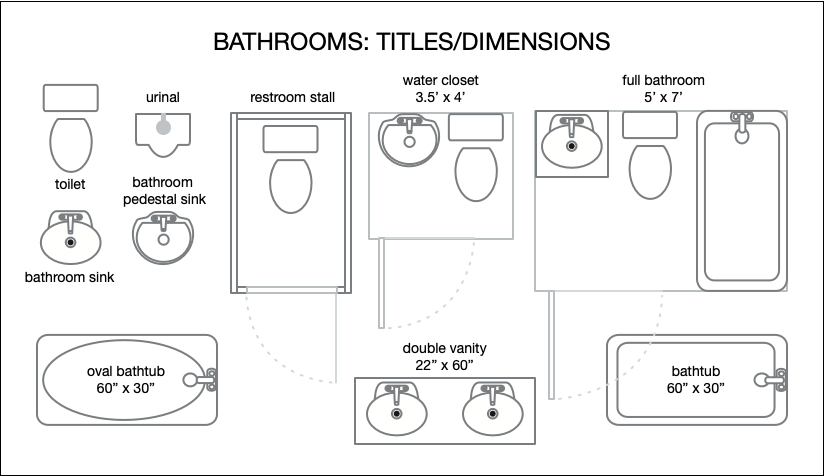

Bathrooms

Commands for adding bathroom elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Toilet”
• “Add Urinal”
• “Add Bathroom Sink”
• “Add Lavatory Sink”
• “Add Restroom Sink”
• “Add Bathroom Pedestal Sink”
• “Add Lavatory Pedestal Sink”
• “Add Restroom Pedestal Sink”
• “Add Bathtub”
• “Add Oval Bathtub”
• “Add Spa Bathtub”
• “Add Restroom Stall”
• “Add Bathroom Stall”
• “Add Lavatory Stall”
• “Add Water Closet”
• “Add [Small] Half Bath”
• “Add [Small] Half Bathroom”
• “Add Full Bathroom”
• “Add Full Bath”
• “Add Double Vanity”
• “Add Double Sinks”

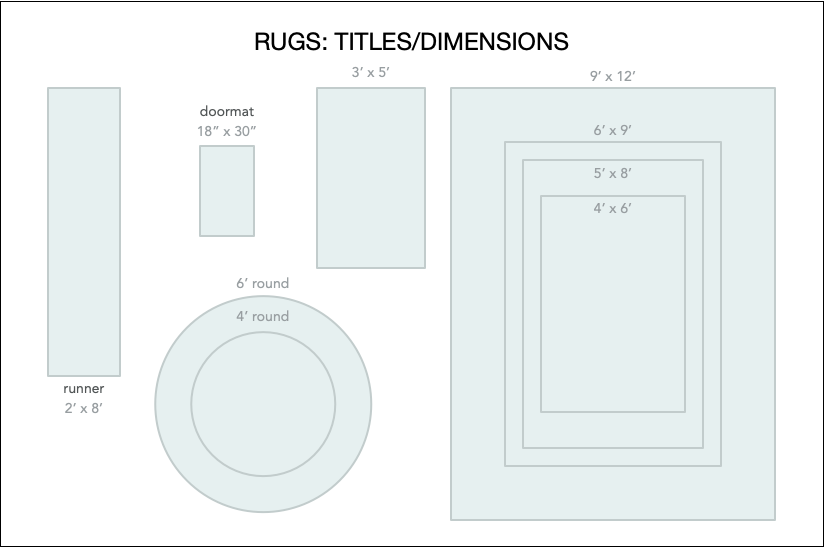

Rugs

Commands for adding area rug elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add 2 by 8 [Foot] Runner”
• “Add Doormat”
• “Add 6-Foot Round Rug”
• “Add 4-Foot Round Rug”
• “Add 3 by 5 [Foot] Rug”
• “Add 4 by 6 [Foot] Rug”
• “Add 5 by 8 [Foot] Rug”
• “Add 6 by 9 [Foot] Rug”
• “Add 9 by 12 [Foot] Rug”

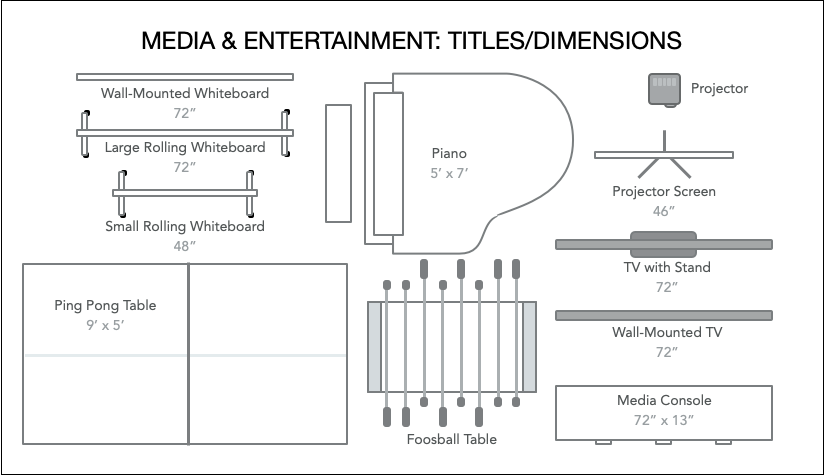

Media & Entertainment

Commands for adding media and entertainment elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add [Grand] Piano”
• “Add Foosball Table”
• “Add Ping Pong Table”
• “Add [Video] Projector”
• “Add [Video] Projector Screen”
• “Add Wall-Mounted TV”
• “Add Wall-Mounted Television”
• “Add TV with Stand”
• “Add Television with Stand”
• “Add Media Console”
• “Add Wall-Mounted Whiteboard”
• “Add Large Rolling Whiteboard”
• “Add 72-Inch Rolling Whiteboard”
• “Add Small Rolling Whiteboard”
• “Add 48-Inch Rolling Whiteboard”

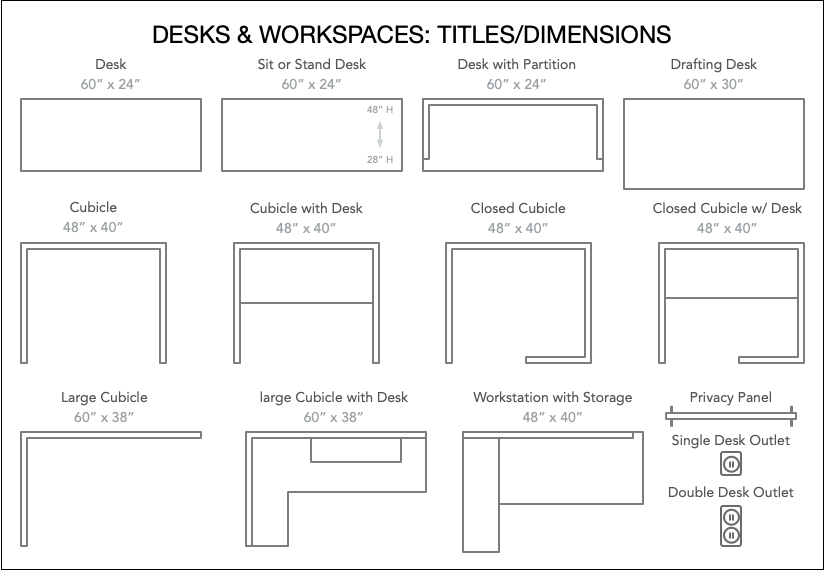

Desks & Workspaces

Commands for adding desk and workspace elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Desk”
• “Add Sit or Stand Desk”
• “Add Desk with Partition”
• “Add Drafting Desk”
• “Add Cubicle”
• “Add Cubicle with Desk”
• “Add Closed Cubicle”
• “Add Closed Cubicle with Desk”
• “Add Large Cubicle”
• “Add Large Cubicle with Desk”
• “Add Workstation with Storage”
• “Add Privacy Panel”
• “Add Single Desk Outlet”
• “Add DOuble Desk Outlet”

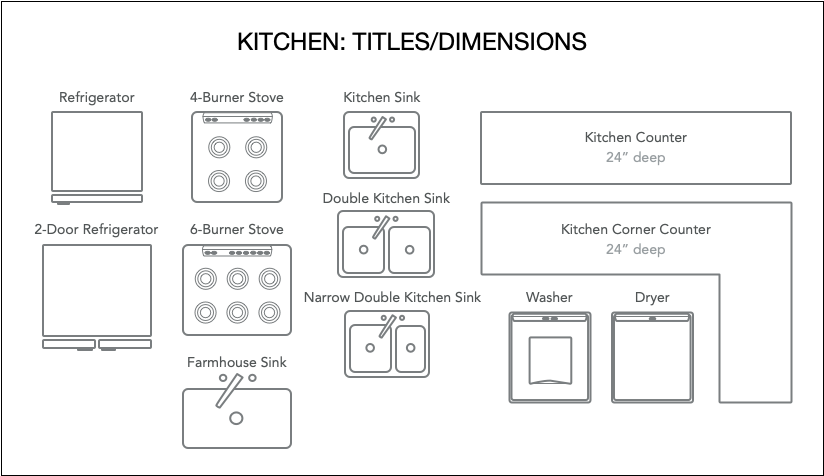

Kitchen

Commands for adding kitchen-related elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add [One-Door] Refrigerator”
• “Add Single-Door Refrigerator”
• “Add Two-Door Refrigerator”
• “Add Double-Door Refrigerator”
• “Add [Four-Burner] Stove”
• “Add Six-Burner Stove”
• “Add Farmhouse Sink”
• “Add Kitchen Sink”
• “Add Double Kitchen Sink”
• “Add Double Narrow Kitchen Sink”
• “Add Washer”
• “Add Dryer”
• “Add [Kitchen] Counter”
• “Add [Kitchen] Corner Counter”
• “Add Corner Kitchen Counter”

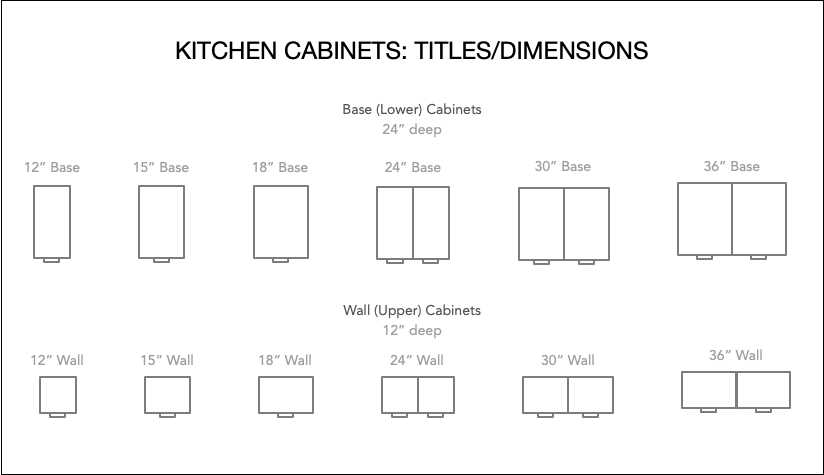

Kitchen Cabinets

Commands for adding kitchen cabinet elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add 12-Inch Base [Kitchen] Cabinet”
• “Add 15-Inch Base [Kitchen] Cabinet”
• “Add 18-Inch Base [Kitchen] Cabinet”
• “Add 24-Inch Base [Kitchen] Cabinet”
• “Add 30-Inch Base [Kitchen] Cabinet”
• “Add 36-Inch Base [Kitchen] Cabinet”
• “Add 12-Inch Wall [Kitchen] Cabinet”
• “Add 15-Inch Wall [Kitchen] Cabinet”
• “Add 18-Inch Wall [Kitchen] Cabinet”
• “Add 24-Inch Wall [Kitchen] Cabinet”
• “Add 30-Inch Wall [Kitchen] Cabinet”
• “Add 36-Inch Wall [Kitchen] Cabinet”

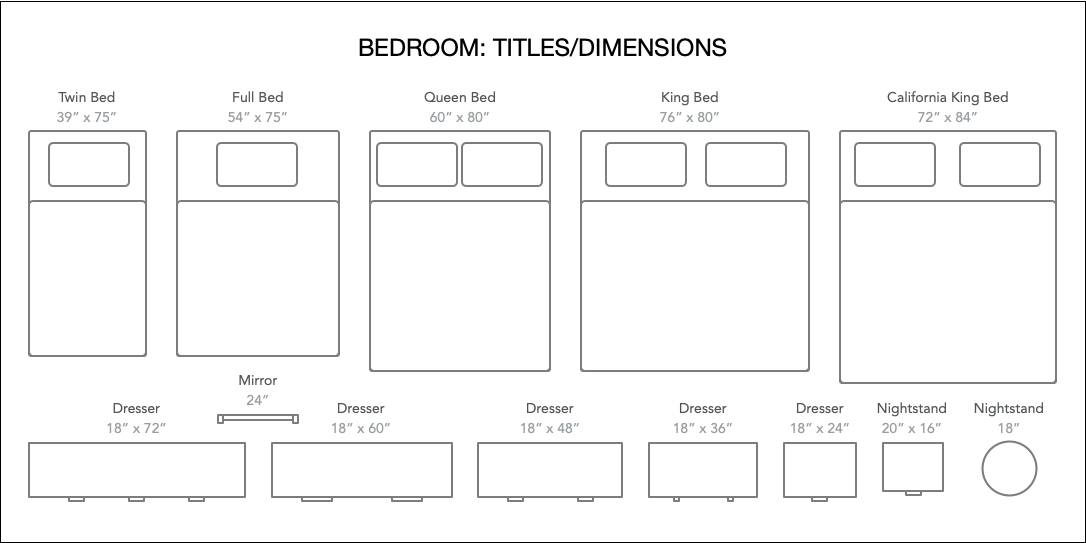

Bedrooms

Commands for adding bedroom elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add Twin Bed”
• “Add Full Bed”
• “Add Queen Bed”
• “Add King Bed”
• “Add California King Bed”
• “Add 72-Inch Dresser”
• “Add 60-Inch Dresser”
• “Add 48-Inch Dresser”
• “Add 36-Inch Dresser”
• “Add 24-Inch Dresser”
• “Add Nightstand”
• “Add Round Nigthstand”
• “Add 24-Inch Mirror”

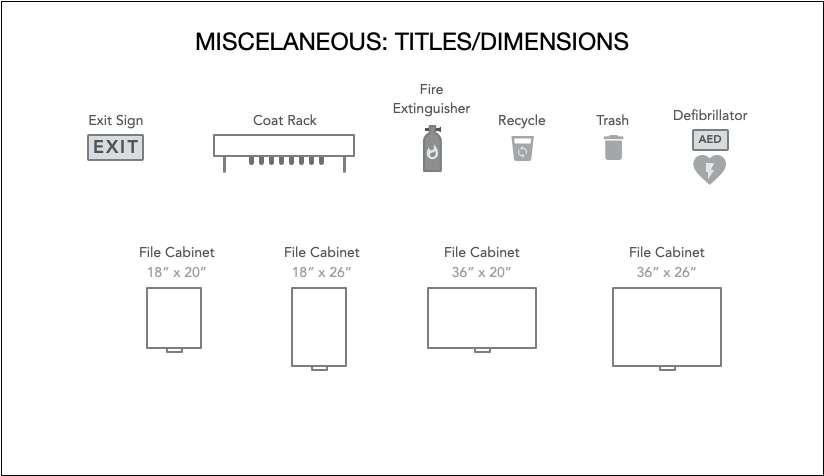

Miscellaneous

Commands for adding various elements to the current canvas at {0, 0}:

Command phrase variations (words in [brackets] are optional):

• “Add File Cabinet”
• “Add 18 x 20 [Inch] File Cabinet”
• “Add 18 x 20" File Cabinet”
• “Add Deep File Cabinet”
• “Add 18 x 26 [Inch] File Cabinet”
• “Add 18 x 26" File Cabinet”
• “Add Double Wide File Cabinet”
• “Add 36 x 20 [Inch] File Cabinet”
• “Add 36 x 20" File Cabinet”
• “Add Double Wide Deep File Cabinet”
• “Add 36 x 26 [Inch] File Cabinet”
• “Add 36 x 26" File Cabinet”
• “Add Coat Rack”
• “Add Fire Extinguisher”
• “Add Exit Sign”
• “Add Recycling Bin”
• “Add Trash Bin”
• “Add Defibrillator”

Script for Adding Stencil Element

Here is a script for placing a specified stencil element on the current canvas:

Add Stencil Element to Canvas at {0, 0}
Copy

(async () => {
	try {
		function createUtterance(textToSpeak){
			AlexID = (
				(app.platformName === "macOS") ?
				"com.apple.speech.synthesis.voice.Alex" :
				"com.apple.speech.voice.Alex"
			)
			voiceObj = Speech.Voice.withIdentifier(AlexID)
			voiceRate = 0.4
			utterance = new Speech.Utterance(textToSpeak)
			utterance.voice = voiceObj
			utterance.rate = voiceRate
			return utterance
		}
		var synthesizer = new Speech.Synthesizer()

		var stencilName = "ZZZZZ"
		var graphicName = "XXXXX"

		try {
			document.name
		}
		catch(err){
			throw {
				name : "Missing Resource",
				message: "No document is open."
			}
		}

		targetStencil = app.stencils.find(stencil => {
			return stencil.name === stencilName
		})

		if(targetStencil === undefined){
			throw {
				name : "Missing Resource",
				message: `The “${stencilName}” stencil is not installed.`
			}
		}

		var foundFlag = false
		targetStencil.load(stncl => {
			console.log("Loaded stencil: “" + stncl.name + "”")
			for(q = 0; q < stncl.graphics.length; q++){
				aGraphicName = stncl.graphics[q].name
				if (aGraphicName !== null){
					if (aGraphicName.localeCompare(graphicName) === 0){
						console.log("Found graphic: “" + graphicName + "”")
						aStencilGraphic = stncl.graphics[q]
						cnvs = document.windows[0].selection.canvas
						rsltArray = cnvs.duplicate([aStencilGraphic])
						aGraphic = rsltArray[0]
						rect = new Rect(
							0,
							0,
							aGraphic.geometry.width,
							aGraphic.geometry.height
						)
						aGraphic.geometry = rect
						document.windows[0].selection.view.select([aGraphic])
						console.log("Added graphic: “" + graphicName + "”")
						foundFlag = true
						break
					}
				}
			}
		})
		if(foundFlag === false){
			throw {
				name: "Missing Element",
				message: `The element ${graphicName} was not found in the stencil set.`
			}
		}

		response = `${graphicName} added`
		utterance = createUtterance(response)
		synthesizer.speakUtterance(utterance)
	}
	catch(err){
		utterance = createUtterance(err.message)
		synthesizer.speakUtterance(utterance)
		//new Alert(err.name, err.message).show()
	}
})();
